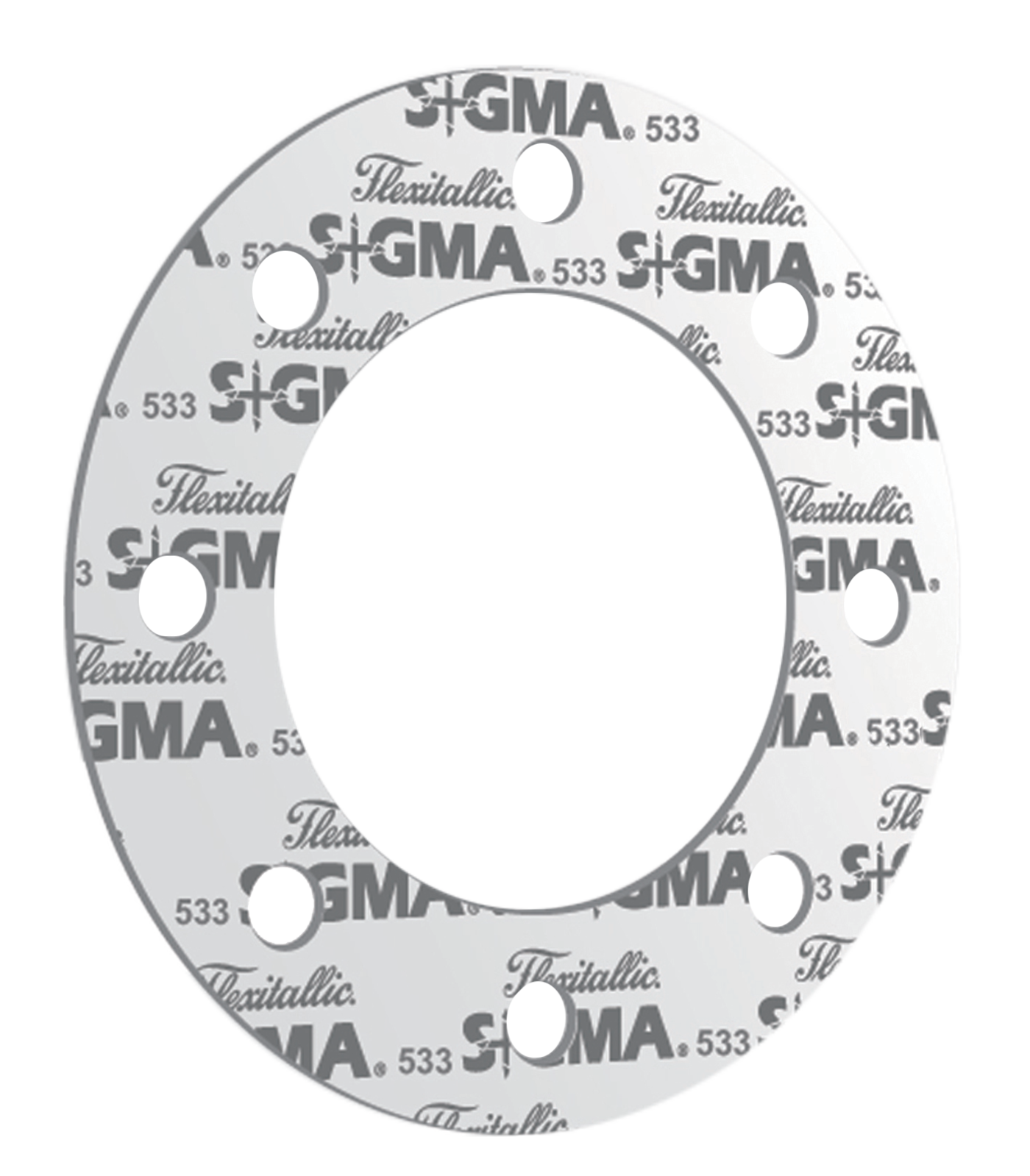

Sigma 533
Sigma 533 is high performance biaxillay orientated sheet sealing material containing PTFE with a Barium Sulfate filler.
|
Service Limits |
|
|
Filler |
PTFE & Barium Sulfate |
|
Colour |
Off-White |
|
Temperature range |
Max: +500F |
|
Thickness |
1/32" , 1/16" , 5/64", 1/8" |
|
Sizes |
60" x 60" |
|
Maximum pressure |
1088 - 1235 depending on thickness |
|
Resistant to |
Chlorine, Caustics, Alkalis to general chemicals, aqueous hydrofluoric acid below 49% |
|
Available Forms: |
Sheet, Cut Gasket |
Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
