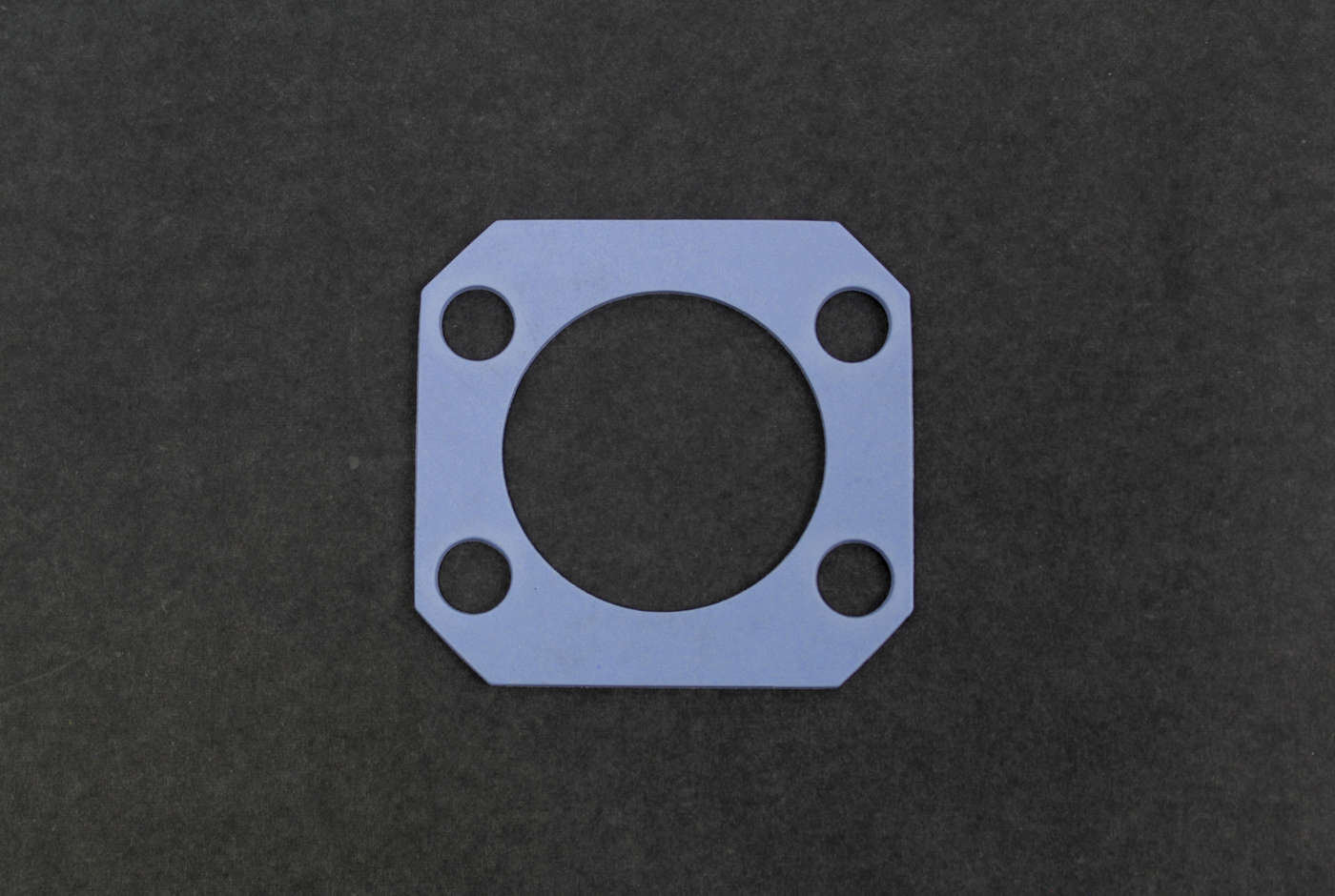

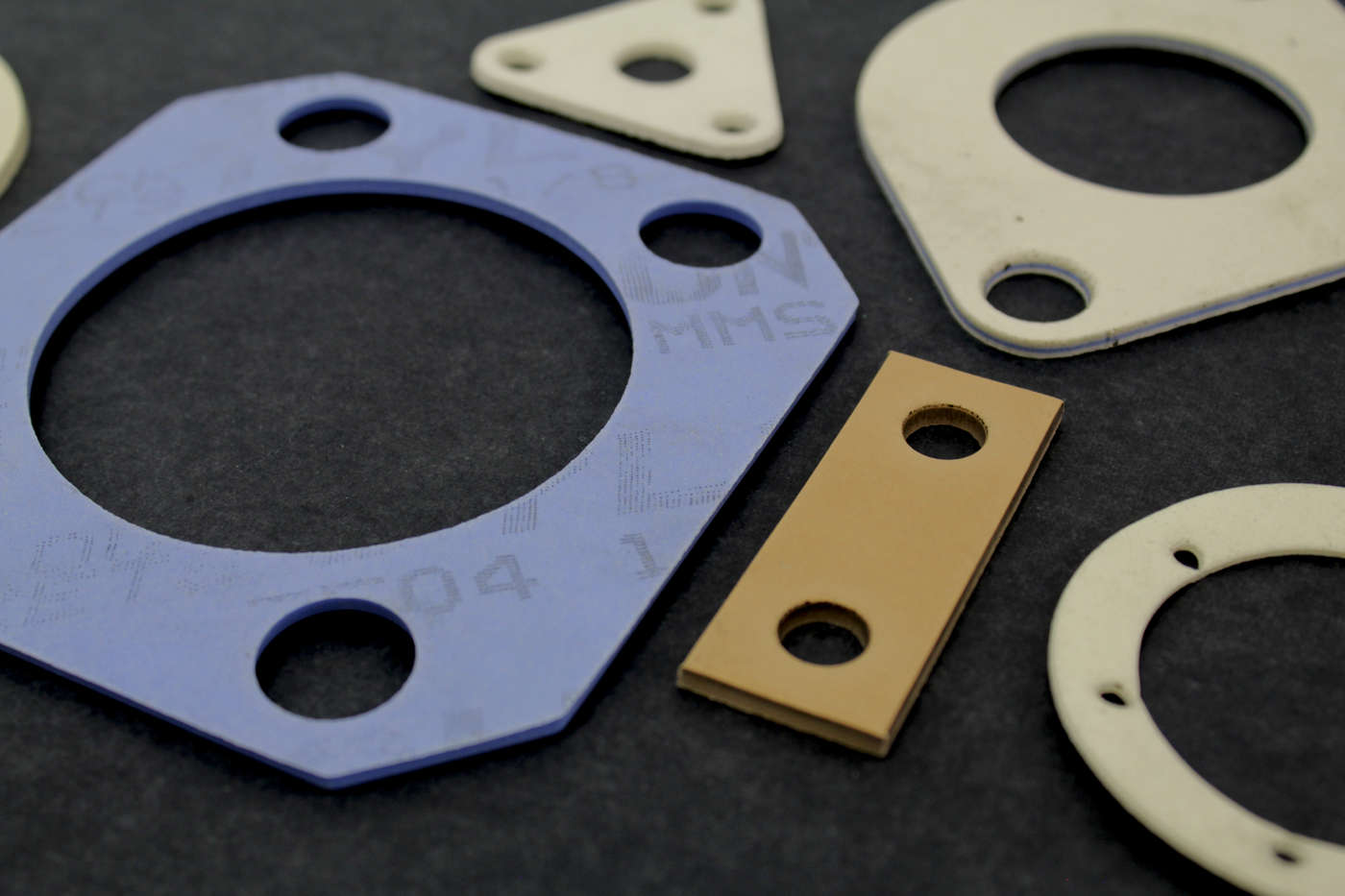

Gylon 3504 Gaskets

Gylon 3504 gasket material is great for moderate acids, hydrocarbons, cryogenics, caustics & refrigerants. Minimized cold-flow & great bolt torque retention. Conforms to FDA standards and available for oxygen service (Gylon 3505) & Gylon EPIX ™ Style.



CLICK HERE TO REQUEST A QUOTE TODAY!

OR SPEAK WITH ONE OF OUR GASKET EXPERTS:
1-905-507-4580

FEATURES AND BENEFITS:

  • Tight seal
  • Improved performance over conventional PTFE
  • Reduced product loss and emissions
  • Reduced creep relaxation
  • Unique manufacturing process minimizes cold flow problems typical of skived and expanded PTFE sheets
  • Excellent bolt torque retention
  • Withstands a wide range of chemicals for extended service life in a wide variety of applications
  • Offers some of the largest sheet sizes in the industry
  • Improved material utilization reduces waste
  • Branding and color coding reduces misapplication
  • Will not burn
  • Will not support bacterial growth



Check chemical compatibility for Garlock Gylon 3545 sheet material or cut gaskets



Service Limits

Filler

Aluminosilicate microspheres

Colour

Blue

Temperature range

-450°F to 500°F

Thickness

1/16", 1/8"

Sizes

60" x 60"

Maximum pressure

800 PSI

Resistant to:

Moderate concentrations of acids and some caustics, hydrocarbons, solvents, water, refrigerants, cryogenics, hydrogen peroxide

Availability: Forms

Sheet, Cut gaskets, Oxygen cleaned; bagged, labelled & sealed (Gylon 3505)



Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
