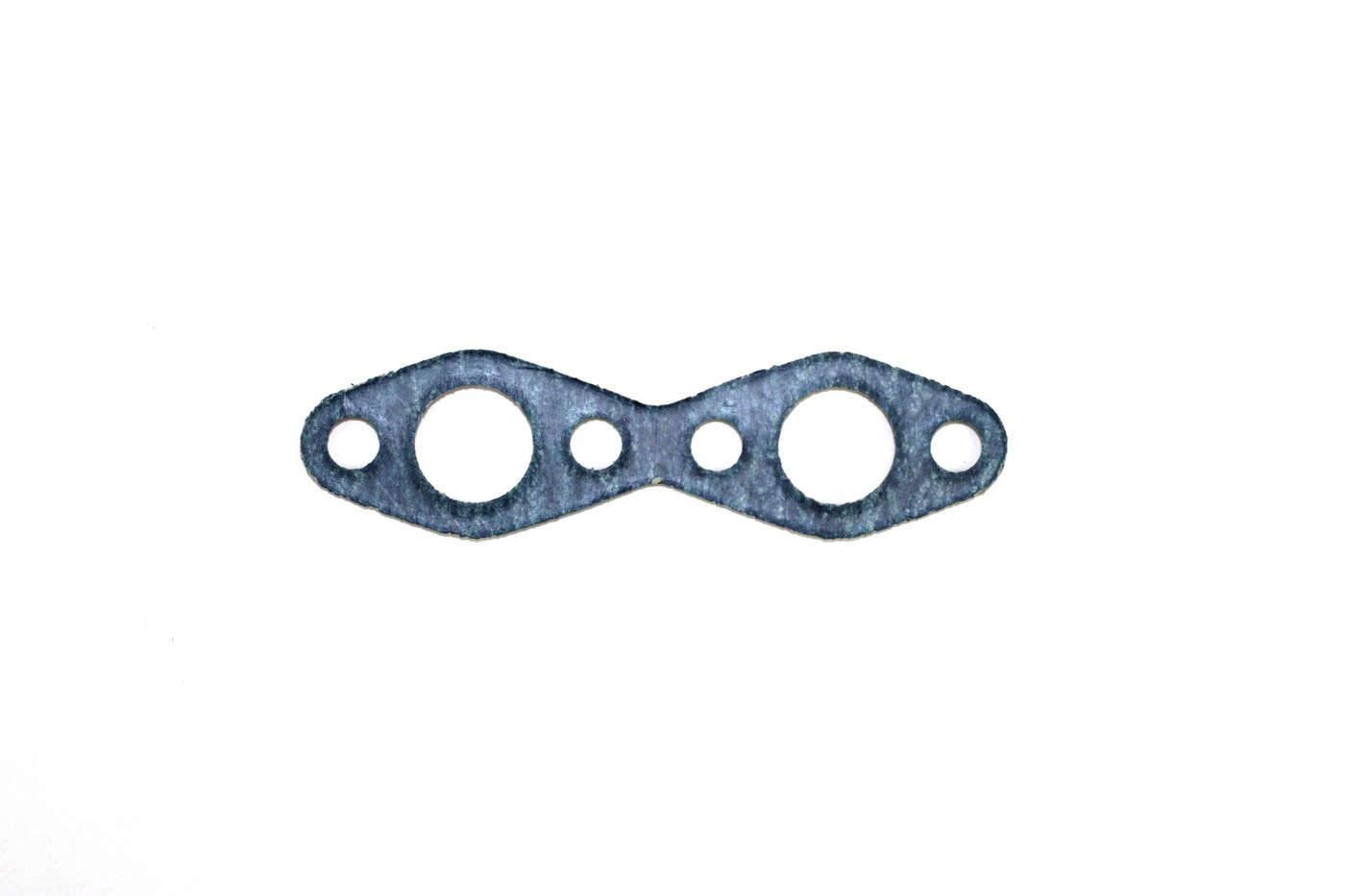

Garlock Multi-Swell Style 3760 Gaskets

The Garlock MULTI-SWELL™ 3760 material is the ultimate problem solver for those lightweight flange and covers where nuisance oil and water leaks plague most industrial facilities. Unlike traditional vegetable fiber and cork gaskets that allow water and oil to “wick” through the body of the gasket, the MULTI-SWELL absorbs the media at the inside edge, swells, and creates a tighter, long term seal.



CLICK HERE TO REQUEST A QUOTE TODAY!

OR SPEAK WITH ONE OF OUR GASKET EXPERTS:

1-905-507-4580

FEATURES AND BENEFITS:

  • Creates compressive load in lightweight flanges in oil and water service
  • More universal than gaskets that swell in oil only — reduces inventory
  • Performs well in flanges that might crush an elastomer gasket, providing use in a wide array of applications
  • More compressible than standard fiber gaskets and seals with low load
  • Easy to cut and handle — extremely flexible, minimizes waste
  • Replaces vegetable fiber gaskets in many applications — won't weep, improving plant safety
  • Seals flanges in "less than perfect" conditions minimizing maintenance
  • Specify 3760-U for applications requiring NSF 61 approved gaskets (Drinking Water)



Check chemical compatibility for Garlock Multi-Swell 3760 sheet material or cut gaskets



Fibers

Aramid



Binder

Proprietary rubber binder



Colour

Blue/Off white



Temperature range

Min: -100°F,

Continuous max: +400°F



Thickness

1/64", 1/32", 1/16", 3/32", 1/8"



Sizes

60" x 60" , 60" x 120"



Maximum pressure

500 PSI



Resistant to:

Oils, fuels, solvents & water.



Applications

More uses than a simple oil swell gasket, replaces vegetable fiber gaskets in most applications, piping, seals flanges





Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.



FULL LIST OF GARLOCK MATERIAL

RELATED CONTENT:



RoHS 3 Compliance Statement - Garlock Compressed Sheet Gasketing - December 2017

Garlock Technical Manual

Garlock Performance Grade Compressed Gasketing


Go to Top of Page

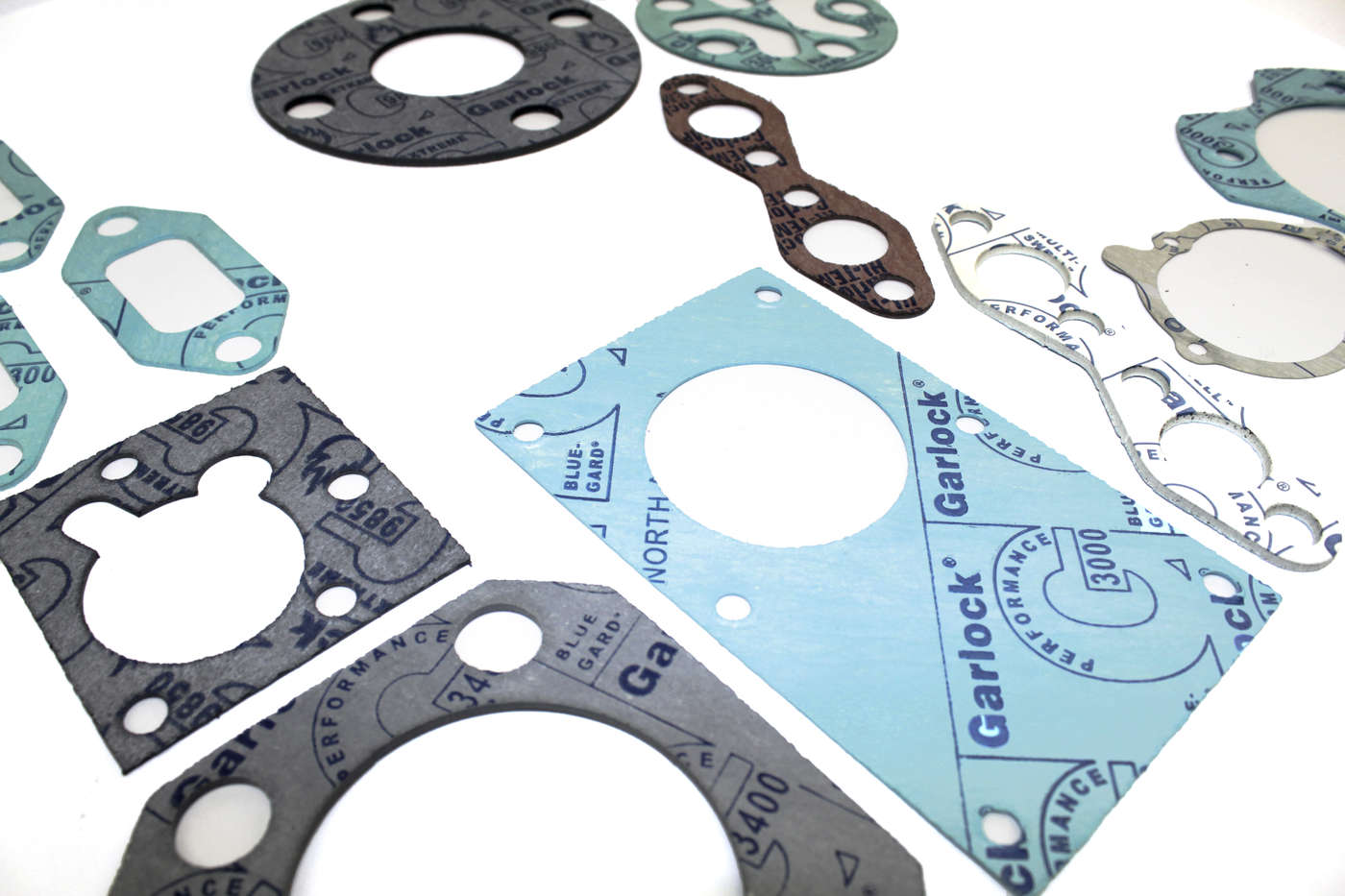

All Custom Gasket supplies custom Garlock Multi-Swell 3760 gaskets, Garlock Multi-Swell 3760 ring gaskets, Garlock Multi-Swell 3760 full face gaskets.
