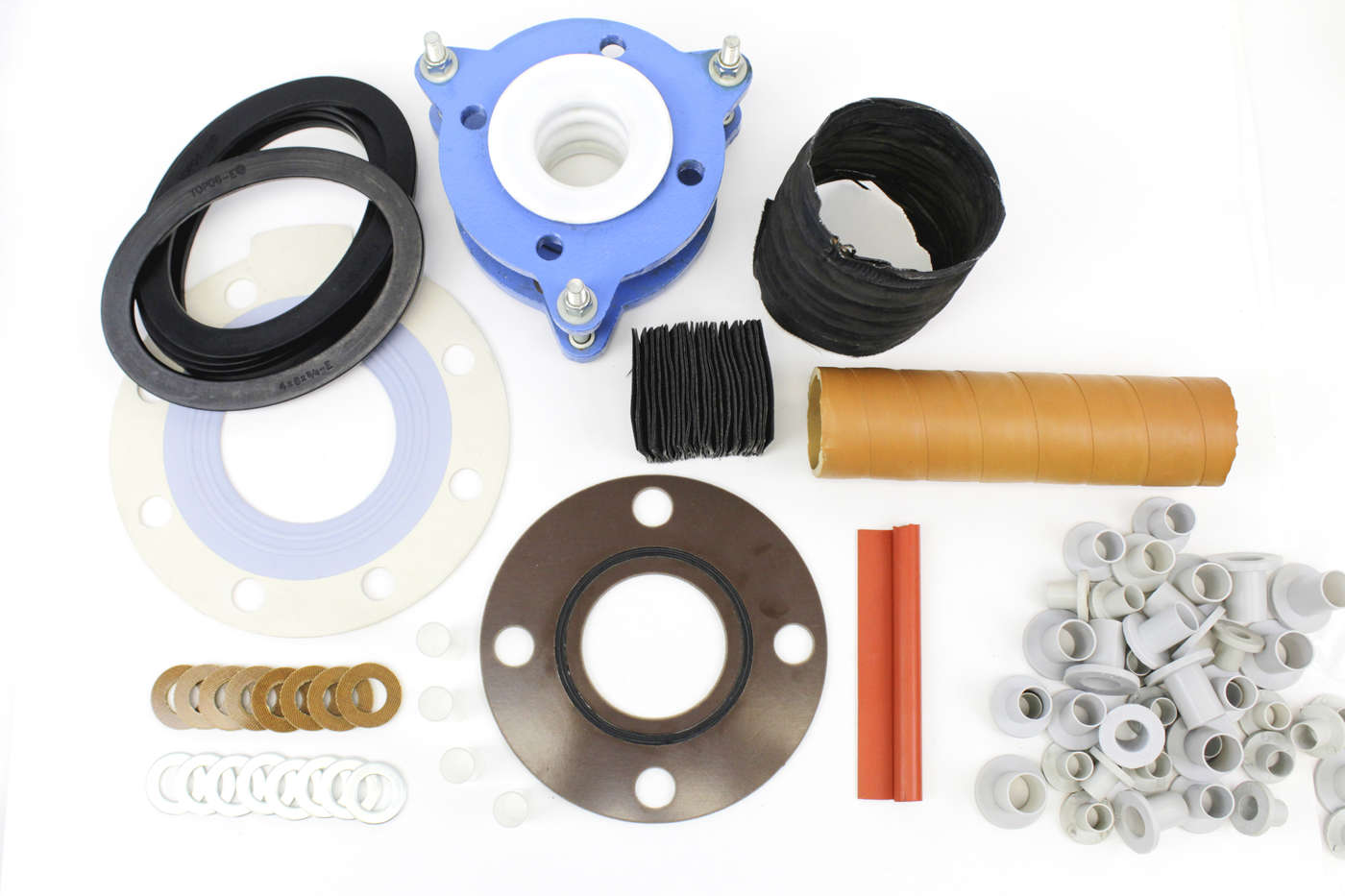

Flange isolation kits

Flange Isolating kits are designed to prevent leakage between flanges.

It is used to maintain reliability of the pipeline and piping system by controlling losses due to corrosion

Flange isolation Kits are manufactured according to ANSI B16.5 and API classes from ½” to 144”.

Isolation kits are available in Style E (full face) Style F (Ring face), Style D (RTJ flanges) and Trojan™ (G10 NSF approved).

When choosing the right isolation kit, the questions to ask is:

  • Type of gasket material required or type of service
  • Flange face type (such as raised face, full face, etc.)
  • Nominal Pipe Size
  • ANSI pressure rating of the flange
  • Service Temperature

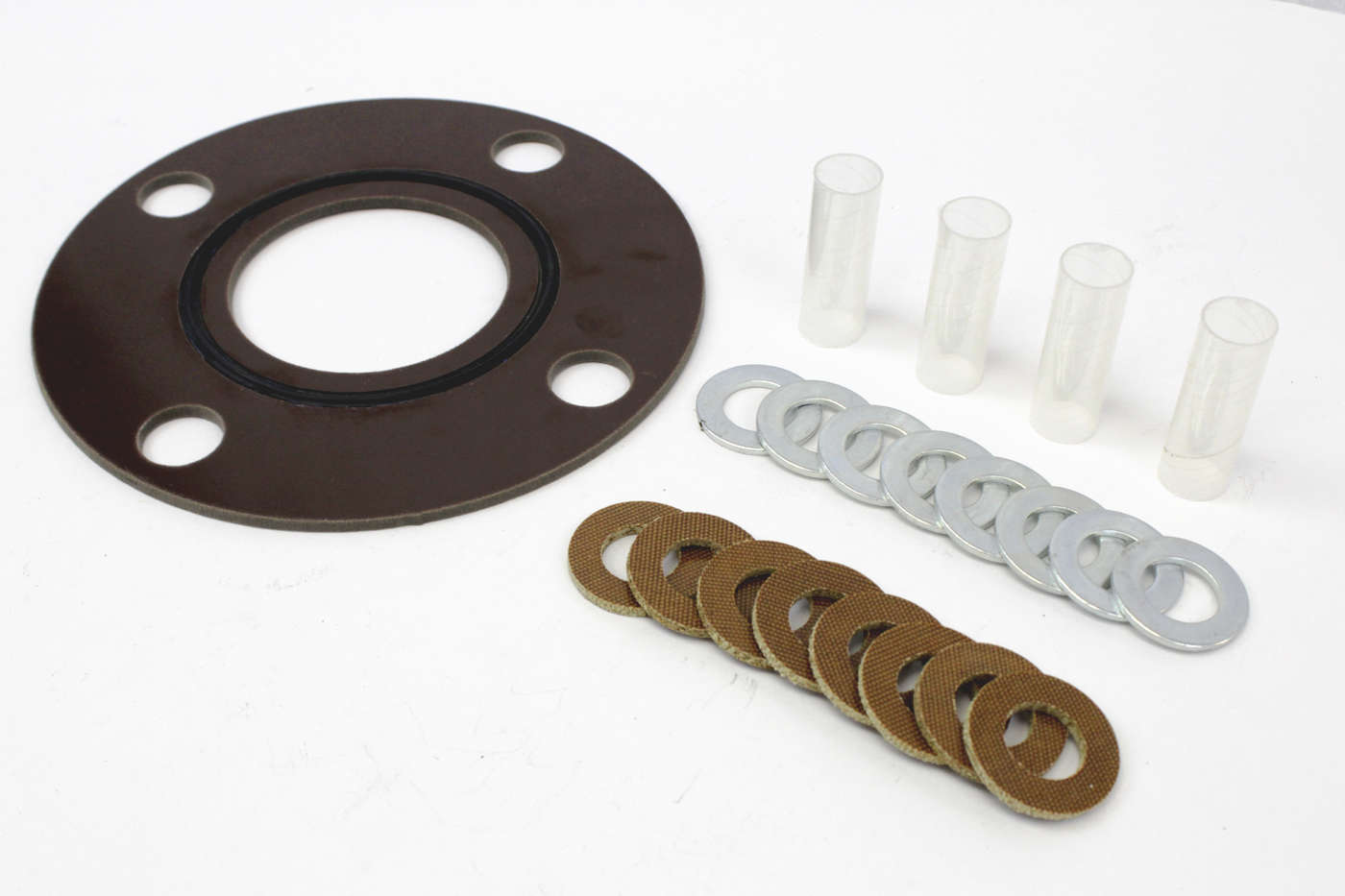

Isolation kits includes a gasket, sleeves, washers, studs, bolts and nuts.
