Tealon TF1580
TF 1580 is great for services with general service in use of fluids, strong caustics, moderate acids, water, & steam. Great to overcome creep relaxation & cold flow. Produced with Virgin PTFE. Conforms to FDA standards.
|
Service Limits |
|
|
Filler |
Barium Sulfate |
|
Colour |
Off-white |
|
Temperature range |
-450°F to 500°F |
|
Thickness |
1/32", 1/16", 3/32", 1/8", 1/4" |
|
Sizes |
62" x 62" |
|
Maximum pressure |
1200 PSI |
|
Resistant to: |
Fluids, strong caustics, moderate acids, chlorine, gases, water, steam, hydrocarbons, hydrogen and aluminum fluoride. |
|
Availability: Forms |

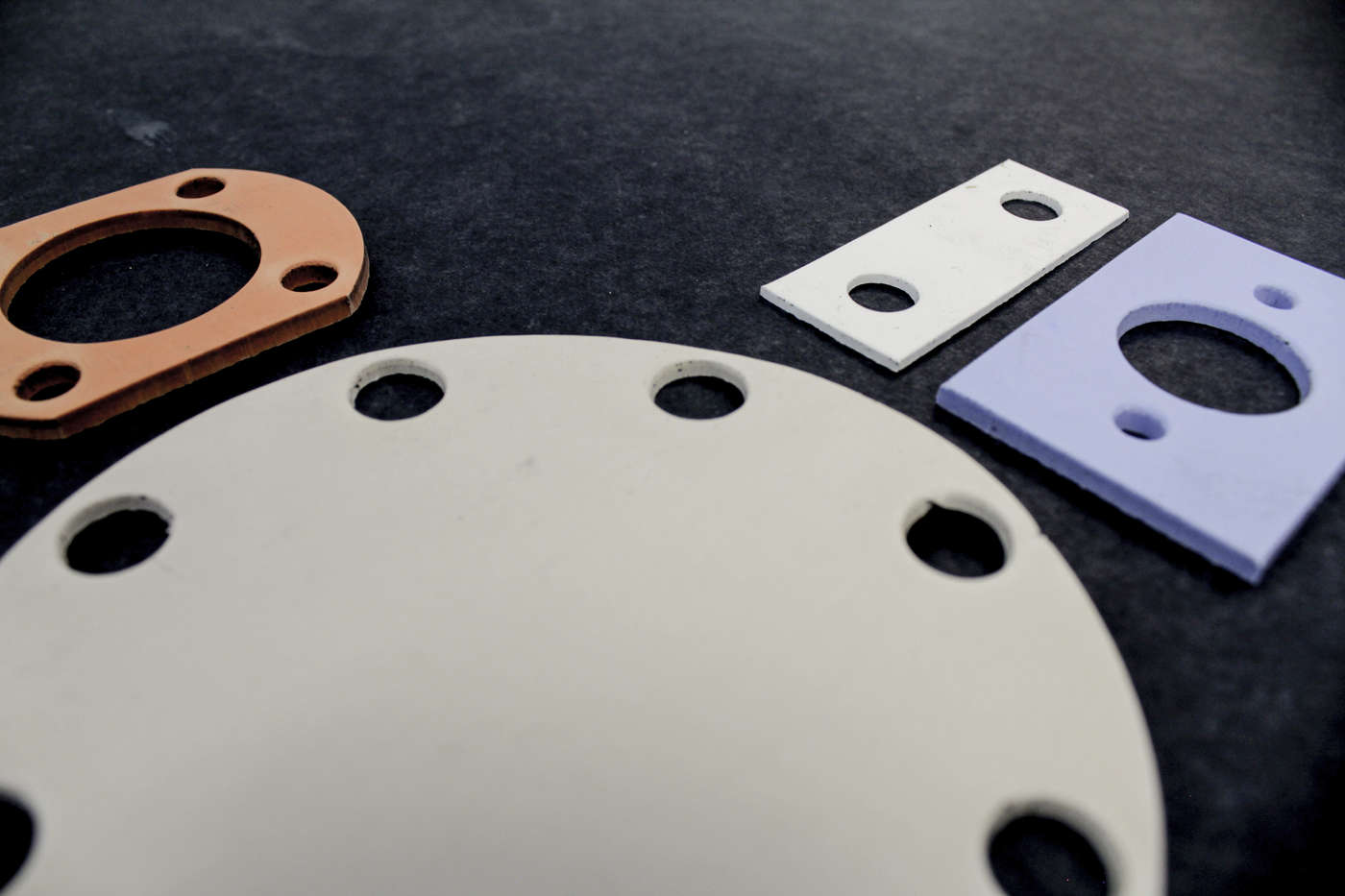

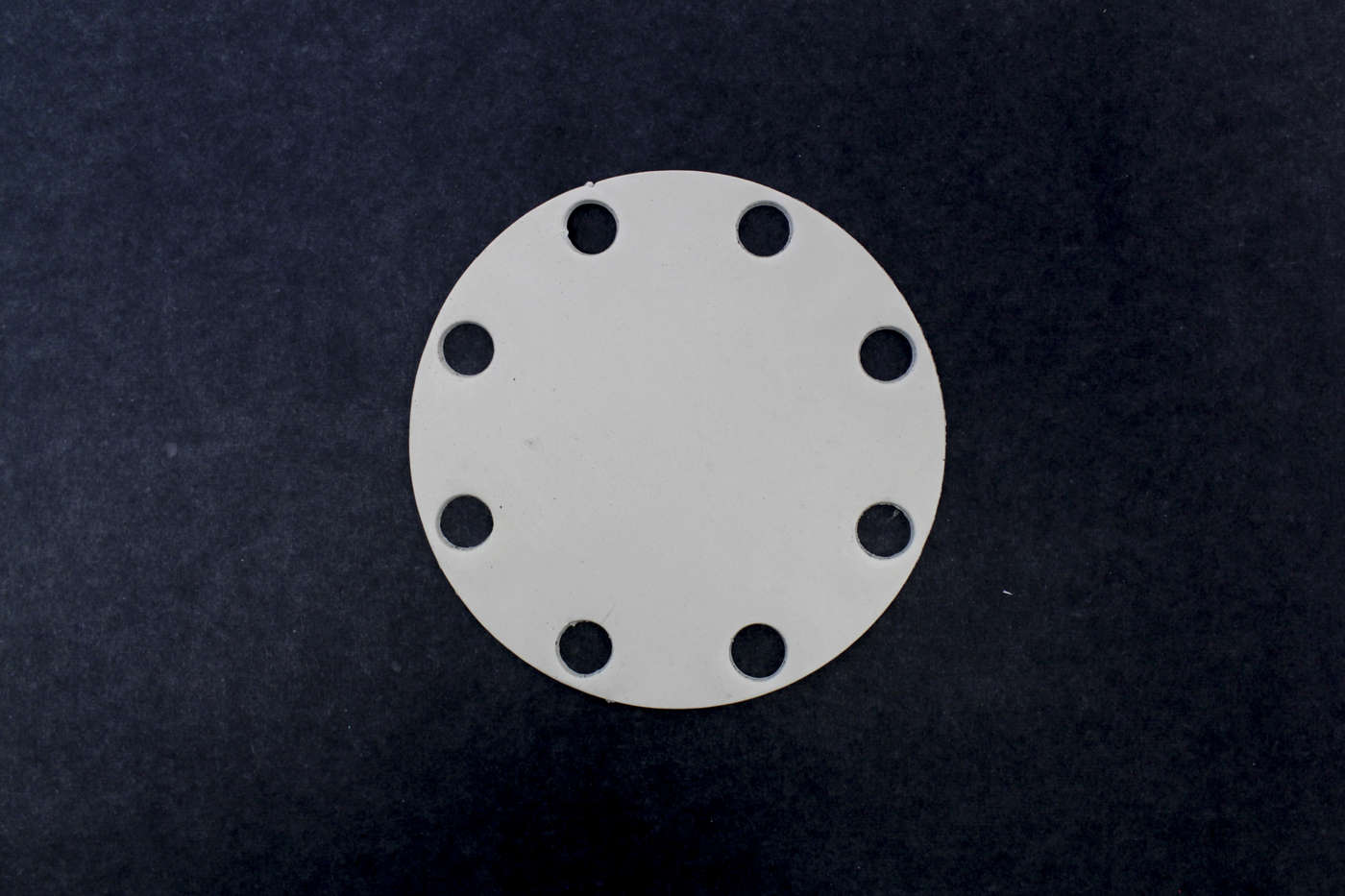

Sheet, Cut gaskets |
Disclaimer: The above values are typical properties and are provided for information only. They should not be used to set specification requirements. It is up to the end user to determine whether the material is suitable for the intended application.
